GEB Benchmark

One structure, six voices.

z (latent schema) → { Story, Mathematics, Program, Drawing Program, canonical Image, stylized I_style }

A benchmark of abstract structures, in the spirit of Gödel, Escher, Bach. The unit is a structural motif — self-reference, recursion, nesting, cycle — not any particular graph: node counts, depths and angles are nuisance variables. Each motif speaks with several voices: a folk-tale shaped like it, an equation fixed by it, and natural or artistic images whose composition is the structure — a vis-graph skeleton is used as the reference for scene generation, so you look at a landscape and the structure dawns on you.

Ⅰ · Motifs — see a scene, grasp a structure

motifSelf-reference — the thing contains itself

$$s = T(s)$$

invariant: the whole appears, unchanged, inside itself

self_reference scene_droste_study — study within study · photo

self_reference scene_mountain_temple — 山中庙 · ink wash

self_reference skeleton_frames — skeleton (generation ref)

story voice — a tale with this shape

[domain: 民间口传]

从前有座山，山里有座庙，庙里有个老和尚，正在给小和尚讲故事。他讲的是：从前有座山，山里有座庙，庙里有个老和尚，正在给小和尚讲故事……

[domain: same structure · English]

Once upon a time there was a mountain; on the mountain, a temple; in the temple, an old monk telling a young monk a story. The story was: once upon a time there was a mountain…

mathematics voice

The story is a fixed point of its own telling:

$$s = T(s), \qquad f(x) = x.$$

There is no base case and no bottom level. The structure is the whole appearing, unchanged, inside itself.

motif schema

{
  "motif_id": "self_reference",
  "name": "Self-reference — the thing contains itself",
  "equation": "s = T(s)",
  "invariant": "the whole appears, unchanged, inside itself",
  "nuisance_variables": [
    "visible nesting levels",
    "medium",
    "domain"
  ]
}

nuisance (deliberately varied, never scored): visible nesting levels, medium, domain

motifRecursive branching — the part repeats the whole

$$T = \operatorname{Node}(T,\dots,T)$$

invariant: every branch, looked at alone, has the same shape as the whole

recursion scene_lightning — lightning · long exposure

recursion scene_river_delta — river delta · aerial

recursion scene_winter_tree — winter tree · photo

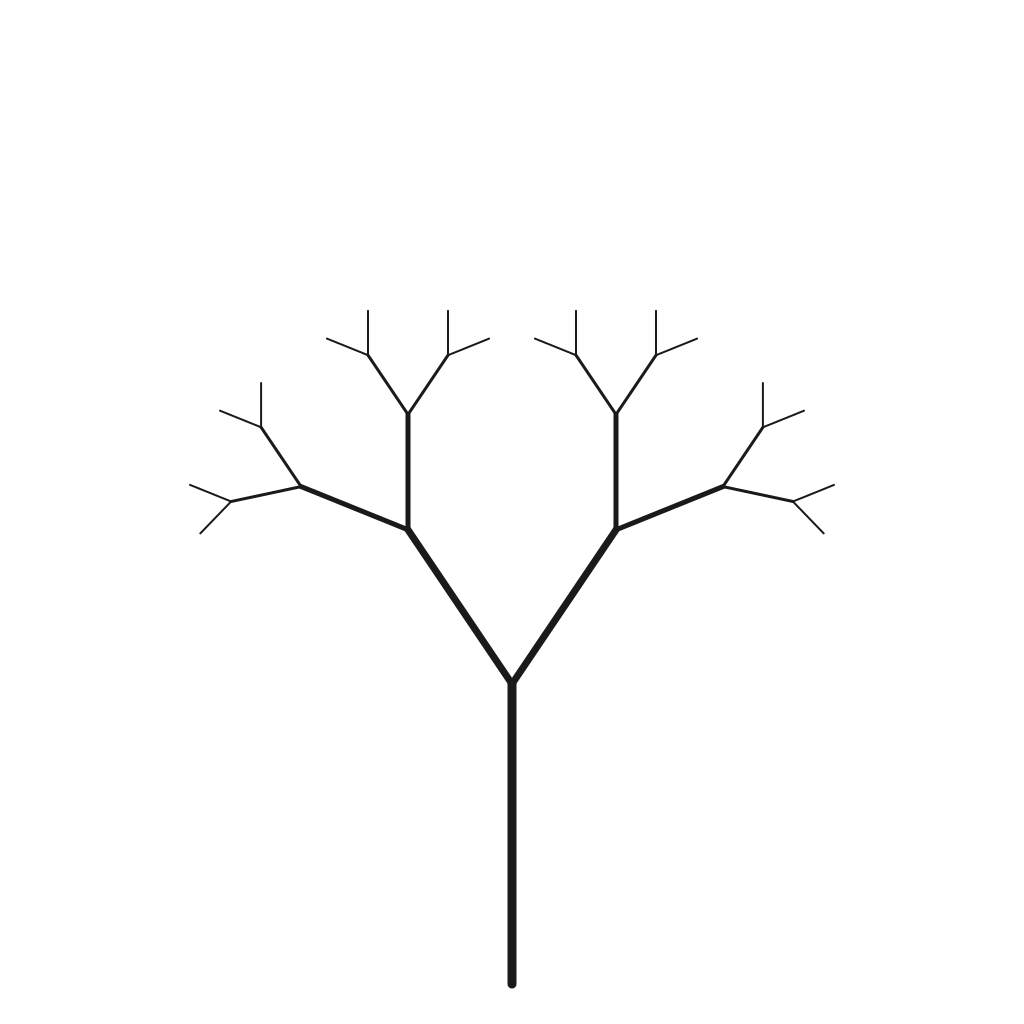

recursion skeleton_tree — skeleton (generation ref)

story voice — a tale with this shape

[domain: 河与支流]

问大河：你从哪里来？大河说：我由几条小河汇成。问其中一条小河，它说：我也是一条河，也由更小的河汇成。再问下去，答案永远一样——每一条河，都是由和它一样的东西组成的。

[domain: same structure · English]

Ask the great river where it comes from, and it answers: from smaller rivers. Ask any of those, and it gives the same answer. However far you go, the answer never changes — each river is made of things shaped exactly like itself.

mathematics voice

A recursively defined object — the type on the left appears, unchanged, on the right:

$$T = \operatorname{Node}(T,\dots,T).$$

Unrolling the equation gives the same branching shape at every scale. How many children, how deep, at what angle — all irrelevant: the structure is that the part repeats the whole.

motif schema

{
  "motif_id": "recursion",
  "name": "Recursive branching — the part repeats the whole",
  "equation": "T = \\operatorname{Node}(T,\\dots,T)",
  "invariant": "every branch, looked at alone, has the same shape as the whole",
  "nuisance_variables": [
    "depth",
    "branching factor",
    "angles",
    "scale ratio",
    "domain"
  ]
}

nuisance (deliberately varied, never scored): depth, branching factor, angles, scale ratio, domain

motifNesting — the same form inside itself, at every scale

$$S_\lambda(X) = X$$

invariant: inside each layer sits a smaller copy of the same layer

nesting scene_pond_ripples — pond ripples · photo

nesting scene_walled_city — walled city · aerial

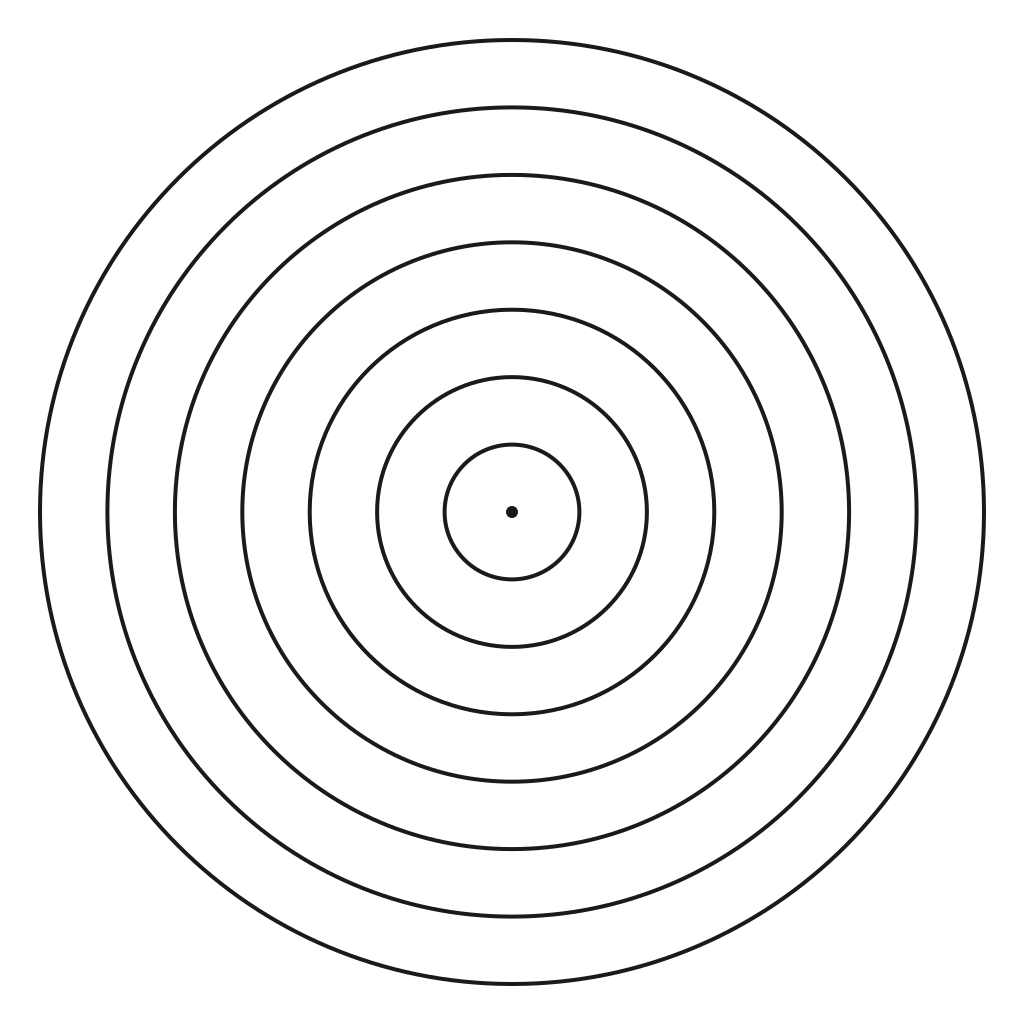

nesting skeleton_concentric — skeleton (generation ref)

story voice — a tale with this shape

[domain: 环城]

这座古城有一圈城墙。走进城门，里面还是一座城，有自己的一圈城墙；再走进去，还是一座城。城里有城，墙里有墙，一直到最中心的一座小小的宫殿。

[domain: same structure · English]

The ancient city has a wall. Pass through the gate, and inside is another city with its own wall; pass through again, another still. City within city, wall within wall, down to one small palace at the very center.

mathematics voice

One scaling map carries every layer onto the next, and the whole pattern onto itself:

$$S_\lambda(X) = X, \qquad 0 < \lambda < 1.$$

How many rings there are, how far apart — irrelevant: the structure is the same form, containing itself.

motif schema

{
  "motif_id": "nesting",
  "name": "Nesting — the same form inside itself, at every scale",
  "equation": "S_\\lambda(X) = X",
  "invariant": "inside each layer sits a smaller copy of the same layer",
  "nuisance_variables": [
    "number of layers",
    "spacing",
    "exact shape",
    "domain"
  ]
}

nuisance (deliberately varied, never scored): number of layers, spacing, exact shape, domain

motifCycle — following the arrows leads back to the start

$$v \leadsto v$$

invariant: there is no first element: the end feeds the beginning

cycle scene_canal_town — canal town · aerial

cycle scene_ouroboros — ouroboros · ink & gold

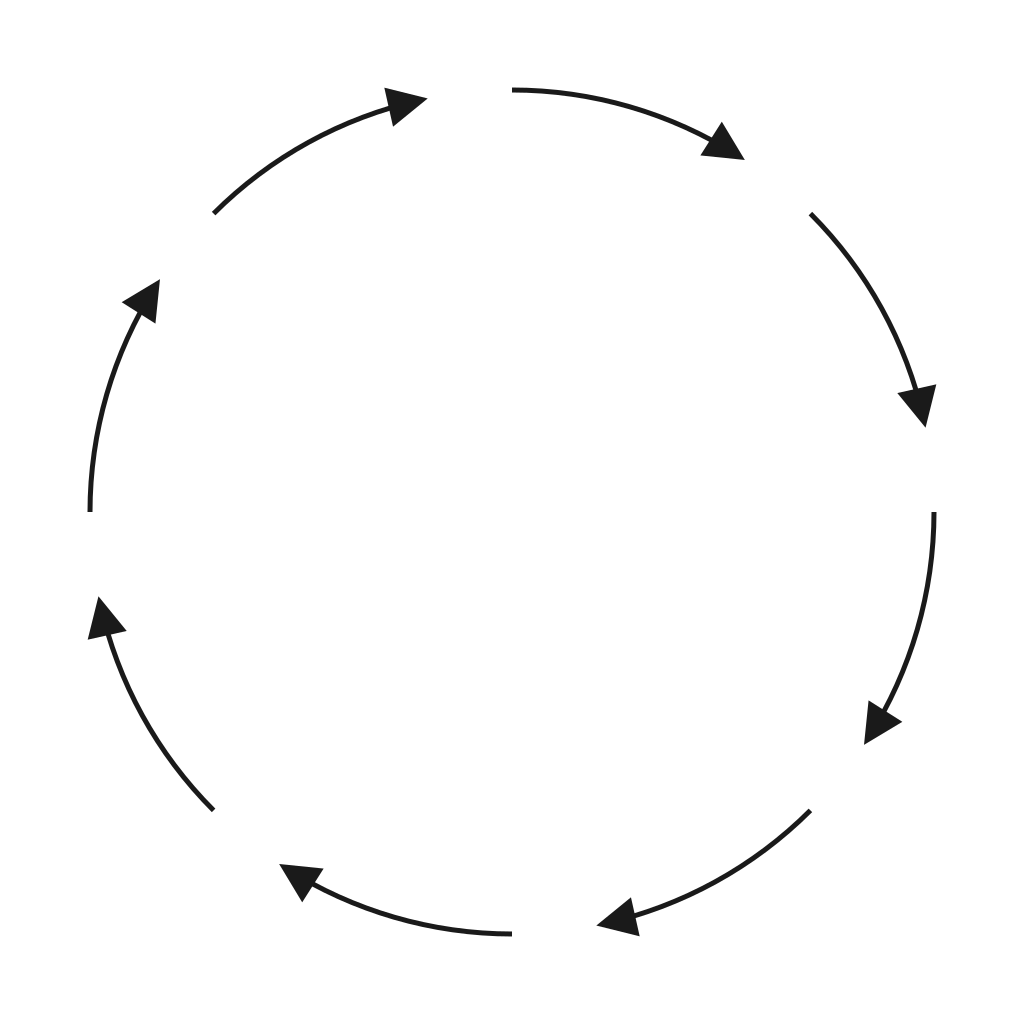

cycle skeleton_ring — skeleton (generation ref)

story voice — a tale with this shape

[domain: 鸡与蛋]

鸡从蛋里孵出来。蛋是鸡下的。那第一只鸡呢？——从蛋里孵出来。那第一个蛋呢？——是鸡下的。这个问题绕了一圈，回到了它自己开始的地方。

[domain: same structure · English]

The hen hatches from the egg; the egg is laid by the hen. Then where did the first hen come from? From an egg. And the first egg? From a hen. The question walks in a circle and arrives back exactly where it began.

mathematics voice

Follow the arrows and you return to your starting point:

$$v_0 \to v_1 \to \dots \to v_n \to v_0, \qquad v \leadsto v.$$

How many steps the loop has, what the elements are — irrelevant: the structure is closure: the end feeds the beginning.

motif schema

{
  "motif_id": "cycle",
  "name": "Cycle — following the arrows leads back to the start",
  "equation": "v \\leadsto v",
  "invariant": "there is no first element: the end feeds the beginning",
  "nuisance_variables": [
    "length of the loop",
    "what the elements are",
    "domain"
  ]
}

nuisance (deliberately varied, never scored): length of the loop, what the elements are, domain

Ⅱ · Diagram families (v0 pilot: verifiable instances)

Graph Worldsgw_cycle_0003

cycle detection: does the graph contain a directed cycle? · answer: yes — B → F → D → E → C → B

gw_cycle_0003 style_gpt_chalkboard — chalkboard · gpt-image

gw_cycle_0003 style_gpt_papercut — paper cut-out · gpt-image

gw_cycle_0003 style_blueprint — blueprint · renderer

gw_cycle_0003 style_pencil — pencil · renderer

story voice

[domain: software]

Module F imports module D. Module D imports module E. Module C imports module E. Module C imports module B. Module E imports module C. Module E imports module A. Module E imports module F. Module B imports module F.

Question: Is there a circular import among these modules?

[domain: messaging]

User F can forward messages to user D. User D can forward messages to user E. User E can forward messages to user C. User C can forward messages to user E. User E can forward messages to user A. User E can forward messages to user F. User B can forward messages to user F. User C can forward messages to user B.

Question: Can a message ever return to a user who already forwarded it?

mathematics voice

Node set $V = \{A, B, C, D, E, F\}$, edge set $$E = \{(B,F), (C,B), (C,E), (D,E), (E,A), (E,C), (E,F), (F,D)\}.$$ Adjacency matrix (rows/columns ordered $A, B, C, D, E, F$): $$M = \begin{bmatrix} 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 \\ 0 & 1 & 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 0 & 1 & 0 \\ 1 & 0 & 1 & 0 & 0 & 1 \\ 0 & 0 & 0 & 1 & 0 & 0 \end{bmatrix}.$$

Question. Does there exist $k \ge 1$ with $\operatorname{tr}(M^k) > 0$?

Solution. Yes; a witness cycle is $$B \to F \to D \to E \to C \to B.$$

program voice (self-checking)

"""GEB benchmark — program voice. sample: gw_cycle_0003 (graph_world / cycle detection)"""

GRAPH = {
    "A": [],
    "B": ['F'],
    "C": ['B', 'E'],
    "D": ['E'],
    "E": ['A', 'C', 'F'],
    "F": ['D'],
}

EXPECTED = True


def has_cycle(graph):
    WHITE, GRAY, BLACK = 0, 1, 2
    color = {v: WHITE for v in graph}

    def dfs(u):
        color[u] = GRAY
        for v in graph.get(u, ()):
            if color[v] == GRAY or (color[v] == WHITE and dfs(v)):
                return True
        color[u] = BLACK
        return False

    return any(color[v] == WHITE and dfs(v) for v in list(graph))


if __name__ == "__main__":
    result = has_cycle(GRAPH)
    assert result == EXPECTED, (result, EXPECTED)
    print(f"has_cycle = {result}  [matches schema]")

drawing-program voice

{
  "canvas": {
    "width": 768,
    "height": 512
  },
  "nodes": [
    {
      "id": "B",
      "x": 384.0,
      "y": 66.0,
      "shape": "circle",
      "role": "ordinary"
    },
    {
      "id": "F",
      "x": 548.5,
      "y": 161.0,
      "shape": "circle",
      "role": "ordinary"
    },
    {
      "id": "D",
      "x": 548.5,
      "y": 351.0,
      "shape": "circle",
      "role": "ordinary"
    },
    {
      "id": "E",
      "x": 384.0,
      "y": 446.0,
      "shape": "circle",
      "role": "ordinary"
    },
    {
      "id": "C",
      "x": 219.5,
      "y": 351.0,
      "shape": "circle",
      "role": "ordinary"
    },
    {
      "id": "A",
      "x": 219.5,
      "y": 161.0,
      "shape": "circle",
      "role": "ordinary"
    }
  ],
  "edges": [
    {
      "source": "B",
      "target": "F",
      "directed": true
    },
    {
      "source": "C",
      "target": "B",
      "directed": true
    },
    {
      "source": "C",
      "target": "E",
      "directed": true
    },
    {
      "source": "D",
      "target": "E",
      "directed": true
    },
    {
      "source": "E",
      "target": "A",
      "directed": true
    },
    {
      "source": "E",
      "target": "C",
      "directed": true
    },
    {
      "source": "E",
      "target": "F",
      "directed": true
    },
    {
      "source": "F",
      "target": "D",
      "directed": true
    }
  ]
}

latent schema (ground truth)

{
  "sample_id": "gw_cycle_0003",
  "family": "graph_world",
  "task_type": "cycle",
  "directed": true,
  "nodes": [
    {
      "id": "A",
      "role": "ordinary"
    },
    {
      "id": "B",
      "role": "ordinary"
    },
    {
      "id": "C",
      "role": "ordinary"
    },
    {
      "id": "D",
      "role": "ordinary"
    },
    {
      "id": "E",
      "role": "ordinary"
    },
    {
      "id": "F",
      "role": "ordinary"
    }
  ],
  "edges": [
    [
      "B",
      "F"
    ],
    [
      "C",
      "B"
    ],
    [
      "C",
      "E"
    ],
    [
      "D",
      "E"
    ],
    [
      "E",
      "A"
    ],
    [
      "E",
      "C"
    ],
    [
      "E",
      "F"
    ],
    [
      "F",
      "D"
    ]
  ],
  "query": {
    "property": "has_cycle"
  },
  "answer": {
    "has_cycle": true,
    "witness_cycle": [
      "B",
      "F",
      "D",
      "E",
      "C",
      "B"
    ]
  },
  "structural_properties": {
    "num_nodes": 6,
    "num_edges": 8,
    "has_cycle": true
  }
}

Graph Worldsgw_reach_no_0002

reachability: A → F ? · answer: no

gw_reach_no_0002 style_gpt_chalkboard — chalkboard · gpt-image

gw_reach_no_0002 style_gpt_papercut — paper cut-out · gpt-image

gw_reach_no_0002 style_blueprint — blueprint · renderer

gw_reach_no_0002 style_pencil — pencil · renderer

story voice

[domain: city-roads]

There is a one-way road from city D to city B. There is a one-way road from city E to city A. There is a one-way road from city D to city A. There is a one-way road from city F to city C. There is a one-way road from city C to city E. There is a one-way road from city A to city B. There is a one-way road from city E to city D. There is a one-way road from city E to city C.

Question: A traveler starts in city A. Can they reach city F by following the roads?

[domain: messaging]

User A can forward messages to user B. User E can forward messages to user C. User D can forward messages to user B. User E can forward messages to user D. User F can forward messages to user C. User C can forward messages to user E. User E can forward messages to user A. User D can forward messages to user A.

Question: A message originates with user A. Can it eventually reach user F?

mathematics voice

Node set $V = \{A, B, C, D, E, F\}$, edge set $$E = \{(A,B), (C,E), (D,A), (D,B), (E,A), (E,C), (E,D), (F,C)\}.$$ Adjacency matrix (rows/columns ordered $A, B, C, D, E, F$): $$M = \begin{bmatrix} 0 & 1 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 1 & 0 \\ 1 & 1 & 0 & 0 & 0 & 0 \\ 1 & 0 & 1 & 1 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & 0 \end{bmatrix}.$$

Question. Does there exist $k \ge 1$ with $(M^k)_{A,F} > 0$?

Solution. No; $(M^k)_{A,F} = 0$ for all $k \ge 1$ (no directed path from $A$ to $F$).

program voice (self-checking)

"""GEB benchmark — program voice. sample: gw_reach_no_0002 (graph_world / reachability)"""

from collections import deque

GRAPH = {
    "A": ['B'],
    "B": [],
    "C": ['E'],
    "D": ['A', 'B'],
    "E": ['A', 'C', 'D'],
    "F": ['C'],
}

SOURCE, TARGET = 'A', 'F'
EXPECTED = False


def reachable(graph, start, target):
    queue = deque([start])
    seen = {start}
    while queue:
        node = queue.popleft()
        if node == target:
            return True
        for nxt in graph.get(node, ()):
            if nxt not in seen:
                seen.add(nxt)
                queue.append(nxt)
    return False


if __name__ == "__main__":
    result = reachable(GRAPH, SOURCE, TARGET)
    assert result == EXPECTED, (result, EXPECTED)
    print(f"reachable({SOURCE} -> {TARGET}) = {result}  [matches schema]")

drawing-program voice

{
  "canvas": {
    "width": 768,
    "height": 512
  },
  "nodes": [
    {
      "id": "E",
      "x": 384.0,
      "y": 66.0,
      "shape": "circle",
      "role": "ordinary"
    },
    {
      "id": "D",
      "x": 548.5,
      "y": 161.0,
      "shape": "circle",
      "role": "ordinary"
    },
    {
      "id": "B",
      "x": 548.5,
      "y": 351.0,
      "shape": "circle",
      "role": "ordinary"
    },
    {
      "id": "A",
      "x": 384.0,
      "y": 446.0,
      "shape": "circle",
      "role": "start"
    },
    {
      "id": "C",
      "x": 219.5,
      "y": 351.0,
      "shape": "circle",
      "role": "ordinary"
    },
    {
      "id": "F",
      "x": 219.5,
      "y": 161.0,
      "shape": "circle",
      "role": "goal"
    }
  ],
  "edges": [
    {
      "source": "A",
      "target": "B",
      "directed": true
    },
    {
      "source": "C",
      "target": "E",
      "directed": true
    },
    {
      "source": "D",
      "target": "A",
      "directed": true
    },
    {
      "source": "D",
      "target": "B",
      "directed": true
    },
    {
      "source": "E",
      "target": "A",
      "directed": true
    },
    {
      "source": "E",
      "target": "C",
      "directed": true
    },
    {
      "source": "E",
      "target": "D",
      "directed": true
    },
    {
      "source": "F",
      "target": "C",
      "directed": true
    }
  ]
}

latent schema (ground truth)

{
  "sample_id": "gw_reach_no_0002",
  "family": "graph_world",
  "task_type": "reachability",
  "directed": true,
  "nodes": [
    {
      "id": "A",
      "role": "start"
    },
    {
      "id": "B",
      "role": "ordinary"
    },
    {
      "id": "C",
      "role": "ordinary"
    },
    {
      "id": "D",
      "role": "ordinary"
    },
    {
      "id": "E",
      "role": "ordinary"
    },
    {
      "id": "F",
      "role": "goal"
    }
  ],
  "edges": [
    [
      "A",
      "B"
    ],
    [
      "C",
      "E"
    ],
    [
      "D",
      "A"
    ],
    [
      "D",
      "B"
    ],
    [
      "E",
      "A"
    ],
    [
      "E",
      "C"
    ],
    [
      "E",
      "D"
    ],
    [
      "F",
      "C"
    ]
  ],
  "query": {
    "source": "A",
    "target": "F"
  },
  "answer": {
    "reachable": false,
    "witness_path": null
  },
  "structural_properties": {
    "num_nodes": 6,
    "num_edges": 8,
    "has_cycle": true
  }
}

Graph Worldsgw_reach_yes_0001

reachability: A → F ? · answer: yes — A → B → C → F

gw_reach_yes_0001 style_gpt_chalkboard — chalkboard · gpt-image

gw_reach_yes_0001 style_gpt_papercut — paper cut-out · gpt-image

gw_reach_yes_0001 style_blueprint — blueprint · renderer

gw_reach_yes_0001 style_pencil — pencil · renderer

story voice

[domain: city-roads]

There is a one-way road from city A to city B. There is a one-way road from city C to city A. There is a one-way road from city B to city D. There is a one-way road from city D to city F. There is a one-way road from city E to city F. There is a one-way road from city B to city C. There is a one-way road from city C to city F. There is a one-way road from city F to city D.

Question: A traveler starts in city A. Can they reach city F by following the roads?

[domain: messaging]

User C can forward messages to user F. User B can forward messages to user C. User B can forward messages to user D. User C can forward messages to user A. User E can forward messages to user F. User D can forward messages to user F. User A can forward messages to user B. User F can forward messages to user D.

Question: A message originates with user A. Can it eventually reach user F?

mathematics voice

Node set $V = \{A, B, C, D, E, F\}$, edge set $$E = \{(A,B), (B,C), (B,D), (C,A), (C,F), (D,F), (E,F), (F,D)\}.$$ Adjacency matrix (rows/columns ordered $A, B, C, D, E, F$): $$M = \begin{bmatrix} 0 & 1 & 0 & 0 & 0 & 0 \\ 0 & 0 & 1 & 1 & 0 & 0 \\ 1 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & 0 & 1 & 0 & 0 \end{bmatrix}.$$

Question. Does there exist $k \ge 1$ with $(M^k)_{A,F} > 0$?

Solution. Yes; the minimal such $k$ is $3$, witnessed by $$A \to B \to C \to F.$$

program voice (self-checking)

"""GEB benchmark — program voice. sample: gw_reach_yes_0001 (graph_world / reachability)"""

from collections import deque

GRAPH = {
    "A": ['B'],
    "B": ['C', 'D'],
    "C": ['A', 'F'],
    "D": ['F'],
    "E": ['F'],
    "F": ['D'],
}

SOURCE, TARGET = 'A', 'F'
EXPECTED = True


def reachable(graph, start, target):
    queue = deque([start])
    seen = {start}
    while queue:
        node = queue.popleft()
        if node == target:
            return True
        for nxt in graph.get(node, ()):
            if nxt not in seen:
                seen.add(nxt)
                queue.append(nxt)
    return False


if __name__ == "__main__":
    result = reachable(GRAPH, SOURCE, TARGET)
    assert result == EXPECTED, (result, EXPECTED)
    print(f"reachable({SOURCE} -> {TARGET}) = {result}  [matches schema]")

drawing-program voice

{
  "canvas": {
    "width": 768,
    "height": 512
  },
  "nodes": [
    {
      "id": "F",
      "x": 384.0,
      "y": 66.0,
      "shape": "circle",
      "role": "goal"
    },
    {
      "id": "B",
      "x": 548.5,
      "y": 161.0,
      "shape": "circle",
      "role": "ordinary"
    },
    {
      "id": "C",
      "x": 548.5,
      "y": 351.0,
      "shape": "circle",
      "role": "ordinary"
    },
    {
      "id": "A",
      "x": 384.0,
      "y": 446.0,
      "shape": "circle",
      "role": "start"
    },
    {
      "id": "E",
      "x": 219.5,
      "y": 351.0,
      "shape": "circle",
      "role": "ordinary"
    },
    {
      "id": "D",
      "x": 219.5,
      "y": 161.0,
      "shape": "circle",
      "role": "ordinary"
    }
  ],
  "edges": [
    {
      "source": "A",
      "target": "B",
      "directed": true
    },
    {
      "source": "B",
      "target": "C",
      "directed": true
    },
    {
      "source": "B",
      "target": "D",
      "directed": true
    },
    {
      "source": "C",
      "target": "A",
      "directed": true
    },
    {
      "source": "C",
      "target": "F",
      "directed": true
    },
    {
      "source": "D",
      "target": "F",
      "directed": true
    },
    {
      "source": "E",
      "target": "F",
      "directed": true
    },
    {
      "source": "F",
      "target": "D",
      "directed": true
    }
  ]
}

latent schema (ground truth)

{
  "sample_id": "gw_reach_yes_0001",
  "family": "graph_world",
  "task_type": "reachability",
  "directed": true,
  "nodes": [
    {
      "id": "A",
      "role": "start"
    },
    {
      "id": "B",
      "role": "ordinary"
    },
    {
      "id": "C",
      "role": "ordinary"
    },
    {
      "id": "D",
      "role": "ordinary"
    },
    {
      "id": "E",
      "role": "ordinary"
    },
    {
      "id": "F",
      "role": "goal"
    }
  ],
  "edges": [
    [
      "A",
      "B"
    ],
    [
      "B",
      "C"
    ],
    [
      "B",
      "D"
    ],
    [
      "C",
      "A"
    ],
    [
      "C",
      "F"
    ],
    [
      "D",
      "F"
    ],
    [
      "E",
      "F"
    ],
    [
      "F",
      "D"
    ]
  ],
  "query": {
    "source": "A",
    "target": "F"
  },
  "answer": {
    "reachable": true,
    "witness_path": [
      "A",
      "B",
      "C",
      "F"
    ]
  },
  "structural_properties": {
    "num_nodes": 6,
    "num_edges": 8,
    "has_cycle": true
  }
}

Recursive Gardensrg_btree_0004

leaf count after depth-4 binary recursion? · answer: 16

rg_btree_0004 style_gpt_botanical_ink — botanical ink · gpt-image

rg_btree_0004 style_gpt_woodcut — woodcut · gpt-image

rg_btree_0004 style_blueprint — blueprint · renderer

rg_btree_0004 style_pencil — pencil · renderer

story voice

[domain: plant-growth]

A plant begins as a single stem. Each season, every growing tip sprouts exactly two new shoots — one angled to the left and one to the right — each shorter than the branch it grew from. This repeats for 4 seasons.

Question: after 4 seasons, how many growing tips does the plant have?

[domain: task-decomposition]

A project starts as one task. Every task that is still too large is split into exactly two smaller subtasks, and the splitting is applied again to each new subtask, 4 times in total.

Question: after 4 rounds of splitting, how many smallest-level subtasks exist?

mathematics voice

Recursive definition: $$T_0 = \operatorname{Leaf}, \qquad T_d = \operatorname{Node}(T_{d-1}, T_{d-1}).$$ Leaf count: $L_d = 2^d$. Total node count: $N_d = 2^{d+1} - 1$. Branch length recurrence with ratio $r = 0.62$: $\ell_{d+1} = r\,\ell_d$.

Question. $L_{4} = ?$

Solution. $L_{4} = 2^{4} = 16$ (and $N_{4} = 31$).

program voice (self-checking)

"""GEB benchmark — program voice. sample: rg_btree_0004 (recursive_garden / binary_tree)"""

from dataclasses import dataclass

DEPTH = 4
EXPECTED_LEAVES = 16


@dataclass
class Node:
    left: "Node | None" = None
    right: "Node | None" = None


def build_tree(depth: int) -> Node:
    if depth == 0:
        return Node()
    return Node(left=build_tree(depth - 1), right=build_tree(depth - 1))


def count_leaves(node: Node) -> int:
    if node.left is None and node.right is None:
        return 1
    return count_leaves(node.left) + count_leaves(node.right)


if __name__ == "__main__":
    result = count_leaves(build_tree(DEPTH))
    assert result == EXPECTED_LEAVES, (result, EXPECTED_LEAVES)
    print(f"leaf_count(depth={DEPTH}) = {result}  [matches schema]")

drawing-program voice

{
  "primitive": "branch",
  "root": {
    "x": 384.0,
    "y": 482,
    "angle": -90,
    "length": 175
  },
  "recursion": {
    "depth": 4,
    "children": [
      {
        "angle_delta": -34,
        "scale": 0.62
      },
      {
        "angle_delta": 34,
        "scale": 0.62
      }
    ]
  }
}

latent schema (ground truth)

{
  "sample_id": "rg_btree_0004",
  "family": "recursive_garden",
  "task_type": "binary_tree",
  "depth": 4,
  "branching_factor": 2,
  "parameters": {
    "angle": 34,
    "scale_ratio": 0.62,
    "initial_length": 175
  },
  "query": {
    "property": "leaf_count"
  },
  "answer": {
    "leaf_count": 16
  },
  "structural_properties": {
    "recursion_depth": 4,
    "branching_factor": 2,
    "leaf_count": 16,
    "node_count": 31,
    "self_similar": true,
    "bilateral_symmetry": true
  }
}

Symmetry Labssym_c4_0005

order of the rotation acting on the asymmetric shape? · answer: C4 (order 4)

sym_c4_0005 style_gpt_ceramic_tile — ceramic tile · gpt-image

sym_c4_0005 style_gpt_neon_sign — neon sign · gpt-image

sym_c4_0005 style_blueprint — blueprint · renderer

sym_c4_0005 style_pencil — pencil · renderer

story voice

[domain: mechanism]

A mechanical pointer is mounted on a central pivot. Each activation of the mechanism turns the pointer by exactly 90 degrees about the pivot, and the pointer itself is a rigid asymmetric piece.

Question: what is the smallest number of activations after which the pointer returns exactly to its original position and orientation?

[domain: dance]

Four dancers stand around the center of a stage. Every beat, the whole formation rotates by one step of 90 degrees about the stage center, keeping each dancer's pose fixed relative to the formation.

Question: what is the smallest number of beats after which the formation is exactly back to its starting configuration?

mathematics voice

Rotation matrix: $$R_\theta = \begin{bmatrix}\cos\theta & -\sin\theta\\ \sin\theta & \cos\theta\end{bmatrix}, \qquad \theta = \frac{2\pi}{4}.$$ Question. What is the order of $R_\theta$ in $SO(2)$, i.e. the smallest $k \ge 1$ with $R_\theta^k = I$?

Solution. $R_\theta^{4} = I$ and $R_\theta^k \ne I$ for $1 \le k < 4$, so the order is $4$; the orbit of the (asymmetric) base shape has exactly $4$ elements and generates the cyclic group $C_{4}$.

program voice (self-checking)

"""GEB benchmark — program voice. sample: sym_c4_0005 (symmetry_lab / rotation_order)"""

import math

POINTS = [(0, 0), (2, 0), (2, -1), (4, 1), (2, 3), (2, 2), (0, 2)]
ANGLE_DEG = 90.0
EXPECTED_ORDER = 4


def rotate(points, angle_deg, center=(0.0, 0.0)):
    a = math.radians(angle_deg)
    ca, sa = math.cos(a), math.sin(a)
    cx, cy = center
    return [(cx + ca * (x - cx) - sa * (y - cy),
             cy + sa * (x - cx) + ca * (y - cy)) for x, y in points]


def close(ps, qs, tol=1e-9):
    return all(abs(px - qx) < tol and abs(py - qy) < tol
               for (px, py), (qx, qy) in zip(ps, qs))


def rotation_order(points, angle_deg, max_k=360):
    pts = points
    for k in range(1, max_k + 1):
        pts = rotate(pts, angle_deg)
        if close(pts, points):
            return k
    raise ValueError("no finite order found")


if __name__ == "__main__":
    result = rotation_order(POINTS, ANGLE_DEG)
    assert result == EXPECTED_ORDER, (result, EXPECTED_ORDER)
    print(f"rotation_order(angle={ANGLE_DEG}) = {result}  [matches schema]")

drawing-program voice

{
  "base_primitive": {
    "type": "polygon",
    "points": [
      [
        0,
        0
      ],
      [
        2,
        0
      ],
      [
        2,
        -1
      ],
      [
        4,
        1
      ],
      [
        2,
        3
      ],
      [
        2,
        2
      ],
      [
        0,
        2
      ]
    ]
  },
  "transform_set": [
    {
      "type": "rotate",
      "angle": 0
    },
    {
      "type": "rotate",
      "angle": 90
    },
    {
      "type": "rotate",
      "angle": 180
    },
    {
      "type": "rotate",
      "angle": 270
    }
  ],
  "composition": "union",
  "canvas_center": [
    384,
    384
  ]
}

latent schema (ground truth)

{
  "sample_id": "sym_c4_0005",
  "family": "symmetry_lab",
  "task_type": "rotation_order",
  "base_shape": {
    "type": "asymmetric_arrow",
    "points": [
      [
        0,
        0
      ],
      [
        2,
        0
      ],
      [
        2,
        -1
      ],
      [
        4,
        1
      ],
      [
        2,
        3
      ],
      [
        2,
        2
      ],
      [
        0,
        2
      ]
    ]
  },
  "group_action": {
    "type": "rotation",
    "angle_degrees": 90,
    "center": [
      0,
      0
    ]
  },
  "repetitions": 4,
  "query": {
    "property": "rotation_order"
  },
  "answer": {
    "rotation_order": 4
  },
  "structural_properties": {
    "rotation_order": 4,
    "reflection_symmetric": false,
    "chirality_preserved": true
  }
}
